DO Analyzer
Dissolved oxygen (DO) measure the amount of oxygen dissolved in an aqueous solution. DO meter is a critical parameter for many applications, such as aquaculture, environmental monitoring, and wastewater treatment.
Transmitter Selection
Electrode Selection
|
Model |

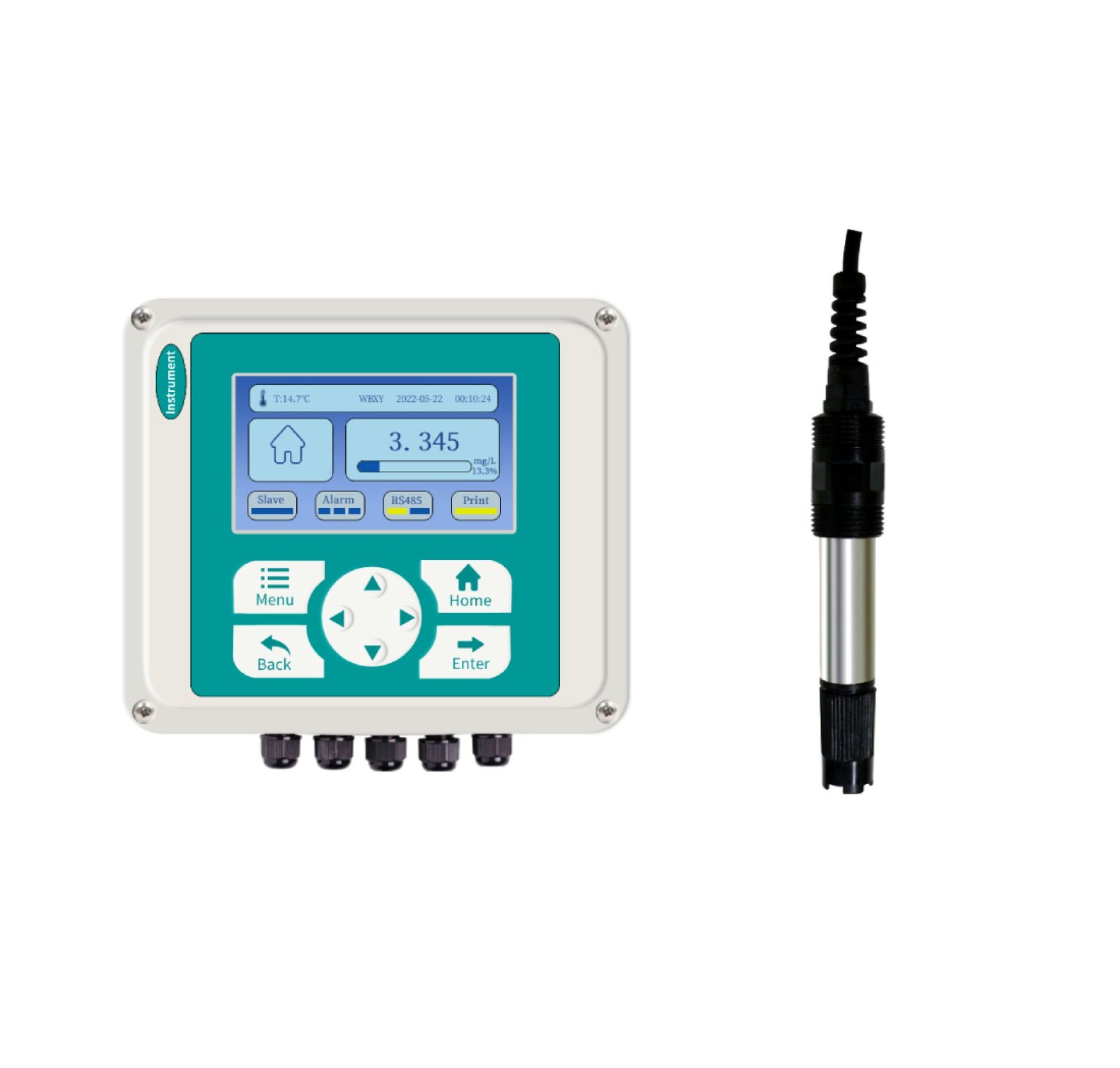

membrane method : DOM01 |

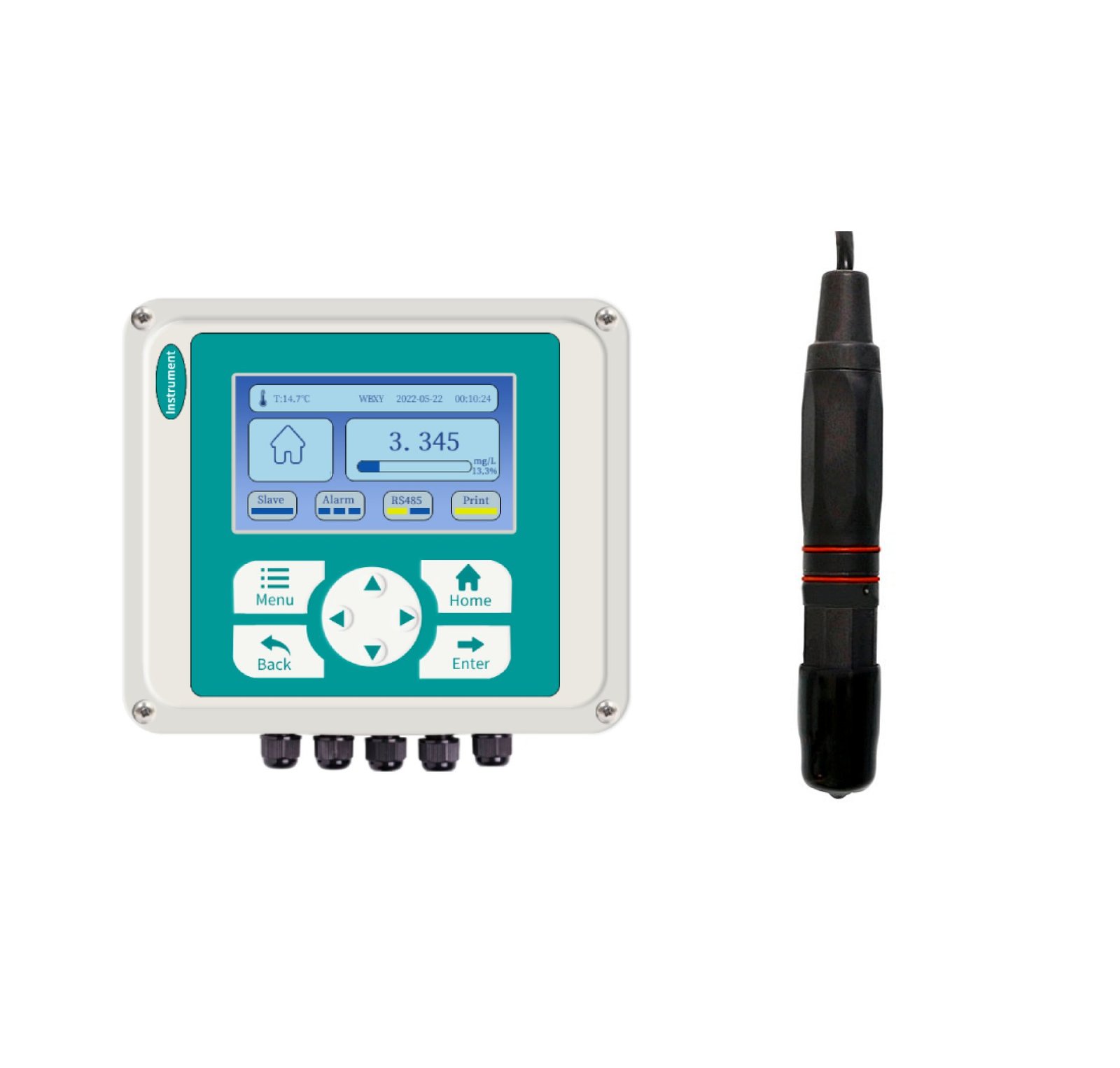

membrane method (digital): DO485 |

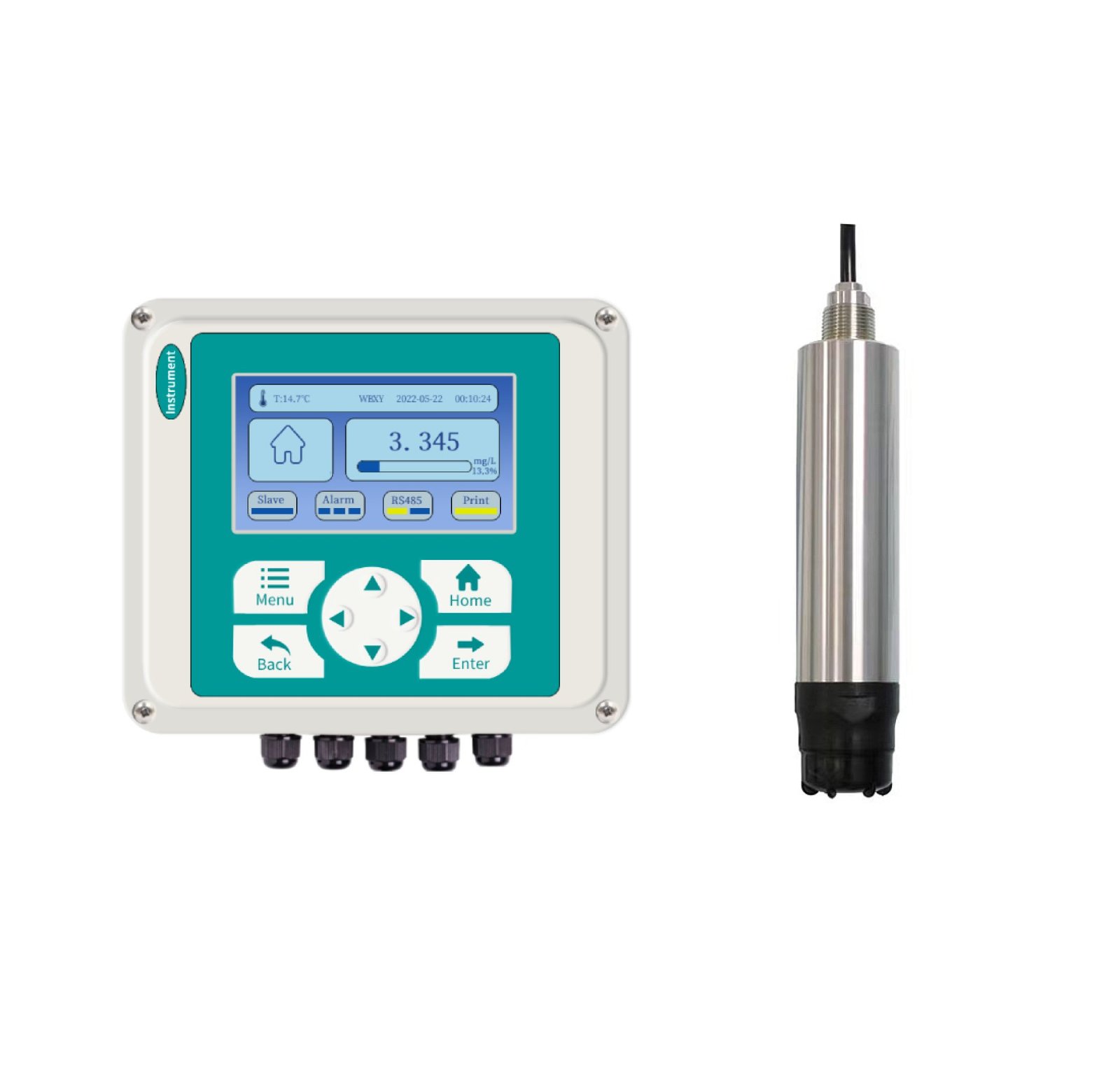

fluorescence method: YGF485 |
|
Measurement range |
0-20mg/l |
0-20mg/l |
0-25mg/l |
|
Temperature |
0-60℃ |
0-60℃ |
0-60℃ |
|
Power supply |
|
12-24VDC |
12-24VDC |
|
Output |
|
RS485 |
RS485 |
|
Temperature compensation |
NTC2252, NTC10K, PT1000, PT100 |
|
|
|
Liquid Contact material |
PPS, 304 |
PPS |
PPS, 304 |
|
Installation interface |
NPT3/4 |
NPT3/4 |
NPT3/4 |
|
Electrode withstand voltage |
0.3Mpa |
0.3Mpa |
0.3Mpa |
|
Application |
sewage treatment, aquaculture, surface water, etc. |
surface water, seawater, aquaculture, etc. |
sewage treatment, aquaculture, surface water, etc. |
